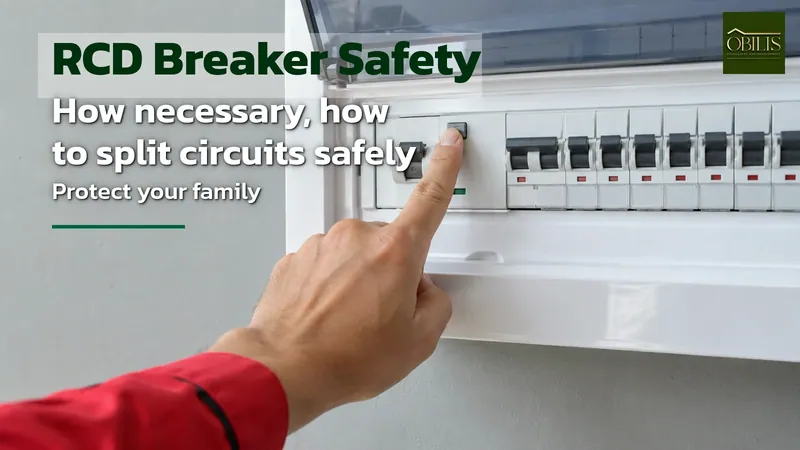

Residual-Current Breakers (RCDs): How Necessary Are They, and How Should Circuits Be Split for Safety?

What Is a Residual-Current Breaker, and How Is It Different From a Regular Breaker?

A residual-current breaker, commonly called an RCD (residual current device) or RCCB, cuts power the instant it detects current leaking to ground at a level dangerous to people, different from a standard breaker, which only trips on overload or a severe short circuit. A house with only standard breakers still carries shock risk if a small leak occurs below the standard breaker’s trip threshold.

Thailand’s standard for this device is TIS 2425 for the RCCB type without built-in overcurrent protection, and TIS 909 for the RCBO type that combines overcurrent protection in one unit (based on the Thai Industrial Standards Institute, TISI).

For protecting people, electrical installation requirements call for an RCD that trips at a leakage current of no more than 30 milliamps, especially on bathroom and wet-area circuits, a level that prevents life-threatening shock within a fraction of a second.

Why Should a New House Have Residual-Current Breakers Built In From the Start?

The highest-risk spots for shock in a house are areas involving water, such as bathrooms, laundry areas, and water heater connections. If residual-current breakers are not planned in during the wiring stage, adding them later means reopening the panel or rerouting wiring, far more disruptive than building it in alongside construction.

Many older houses across Isan still run on standard breakers alone, built before this standard became widely known. Homeowners building new now have the chance to set up a safer system from the start without paying for a later retrofit.

The added cost of a residual-current breaker per circuit is modest compared to the total construction budget, which is why owners should ask for it to be itemized clearly in the BOQ before agreeing on a price with the contractor.

How Should Circuits Be Split for Residual-Current Breakers to Work at Full Effectiveness?

Splitting circuits by function, a bathroom circuit, a water heater circuit, a kitchen outlet circuit, and a lighting circuit, means that if a leak happens in one spot, that circuit’s residual-current breaker trips only that section, instead of cutting power to the whole house.

Circuits directly involving water, like water heaters and water pumps, should have their own dedicated residual-current breaker rather than sharing one with unrelated circuits. Combining them means a trip in one spot disrupts devices that have nothing to do with the leak.

A well-designed main panel should leave spare slots for future circuits, in case the owner later adds a bathroom or new electrical equipment, without needing to replace the entire panel.

How Does Grounding Relate to Residual-Current Breakers?

A residual-current breaker works at full effectiveness only when the house has a correctly installed grounding system alongside it. The ground wire safely carries leaking current into the earth, while the breaker detects the current imbalance and trips the circuit instantly.

A house with a residual-current breaker but no grounding, or incorrectly connected grounding, may not get the full protection the system was designed for. Checking the grounding system should be part of the full electrical inspection before move-in.

An experienced electrician will test the ground resistance value and actually test that the residual-current breaker trips correctly before handing over the house, not just install the device and call the job done without testing it.

What to Watch for When a Residual-Current Breaker Trips Unusually Often

If a residual-current breaker trips frequently without an obvious cause, it may be due to minor accumulated leakage in a specific appliance, such as a degraded water heater or wiring that has absorbed moisture inside a conduit.

Frequent tripping is not a sign the breaker itself is faulty; it is usually a sign of a circuit issue that needs checking. Repeatedly flipping the breaker back on without finding the cause can let a hidden leak escalate into a full short circuit.

Homeowners should note which appliance was running when the breaker tripped, then tell the electrician to check that specific point. That narrows down the cause much faster than inspecting the entire system with no starting clue.

Choose a Team That Plans Residual-Current Breakers Into the House Design

Placing residual-current breakers and splitting circuits should be part of the house design from the start, not a decision an electrician makes on-site without a plan to follow, otherwise future inspection and renovation becomes harder than it needs to be.

OBILIS specifies a dedicated residual-current breaker for every water-related circuit, and lists it clearly in the BOQ before pricing is finalized, instead of quietly cutting it to lower the quoted price without telling the owner.

To get a rough idea of your budget, try the house budget planner, or contact the team to discuss the details.

When choosing a contractor, ask to see the electrical plan with each circuit’s residual-current breaker position clearly marked, rather than taking their word that shock protection is already covered.

Related reading: Planning Air Conditioning During House Construction: What to Prepare Before the Walls Go Up

Frequently Asked Questions

Does every circuit need a residual-current breaker?

Not every circuit needs one, but water-related circuits like bathrooms and water heaters should have a dedicated one, so only the risky point trips without affecting the rest of the house.

Can a residual-current breaker replace a regular overcurrent breaker?

No, they serve different purposes. An overcurrent breaker protects against overload and short circuits, while a residual-current breaker protects people from dangerous leakage current. A safe house needs both working together.

Can you add a residual-current breaker to an older house?

Yes, but have an electrician check the existing grounding and panel first. If the grounding is not correct, adding the breaker alone may not give the full protection it is designed to provide.
